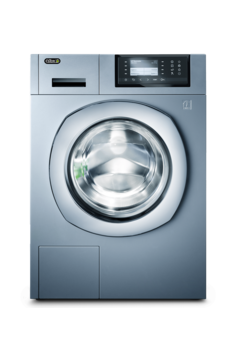

Washing machine Esteri 7720

  • Capacity 6,0-6,7 kg
  • Spin 1500 r/min
  • Programs for normal laundry
  • High spin extractor
?

ESTERI 7720 is a high spin extractor full-automatic washing machine, which is suitable for apartment house laundry, cleaning centers, sheltered homes, facilities etc. for main machine or assistance machine.

Download brochure
  • Capacity 6,0-6,7 kg
  • Spin 1500 r/min
  • Programs for normal laundry
  • High spin extractor
?

User friendly

The machines high-resolution 4,3” colour display is clear. The display is in Finnish, but there is a separate button where you can choose between 22 languages. The display changes back to Finnish after the program. It's easy to select the prgoram, because the selectable functions buttons are lit. There are 20 pcs of basic programs and you can scroll them easily on the display.
It's possible to make changes to the programs by using additional functions like prewash, express, extra rinse and spin speed. In addition to basic programs there is five textile specific program groups e.g. sportswear. Each group has a own button, and by pressing them you get to scroll through the programs. The Proficlean button is used to select a program group customised to the use, which are: Cleaning, Industry and Wellness center.
The Favourites button is used to select the most used programs and they can be quickly activated with a few clicks. The program name, remaning time and the programs temperature is shown on the display during the program. The timed start is selectable for up to 7 days. Useful when you want the laundry to be washed before the work day begins after the weekend.

The new dimension of 3D-washing

The new 3D drum moves the laundry also between the drums front and back. The increased movement of the laundry raises the washing effectivity. The program has a textile customised treatment thanks to the asymmetrical vanes of the drum.
A drum with very dense holes (7614 holes) allows the water to flow evenly between the textiles. Three rinses guarantees a good and fresh wash. The extra rinse can be activated e.g. for those who are suffering from detergent hypersensitivity.
Thanksto the high spin effectivity (1500 r/min), the remaning dampness is only 44%. This saves time and energy in the drying.

Comfort at all levels

A clear display and a A3 sized quick guide guides the user. The machine is easy to load and empty thanks to a very large loading door which opens 180 degrees. The door is right-handed, but can also be canged to left-handed. The running noise is very quiet (spin 63 dB), thanks to the triple soundproofing on the machine.

Professional quality to continuous use

The washing machine is manufactured by the Swiss Schulthess AG, who has an over 100 year experience of manufacturing washing machines. The guarantee of quality is e.g. a sturdy drum bearing, freguency transformed asynchronous engine and sturdy frame design. The machines have a two year full guarantee and a five year structural guarantee, when used for apartment house landry.

Capacity

load 7,0 kg
drum capacity 60 l

Spin

Maximum speed 1500 r/min
G-value 534 kp/kg
Remaning damp 43 %

Programs

Microprocessor control  yes
Normal laundry program 15

Electrical connection, standard

Type of power 2N 400V 50 Hz
Cord 4 x 1,5 mm²
Fuses 2 x 10 A
Heating power 4,4 kW
Maximum nominal-power 4,6 kW

Electrical connection, reduced power 10A

Type of power 1N 230V 50 Hz
Cord 3 x 1,5 mm²
Fuses 1 x 10 A
Heating power 2,1 kW
Maximum nominal-power 2,3 kW

Water connection

Pipe size DN20
Water pressure 0,1 - 1,0 MPa
Cold water connection external thread 3/4"
Hot water connection (optional) external thread 3/4"

Water removal, drain valve (7720-V)

Connection Ø 50 mm
Power 50 l/min

Water removal, drain pump (7720-P)

Connection Ø 21 mm
Power 50 l/min
